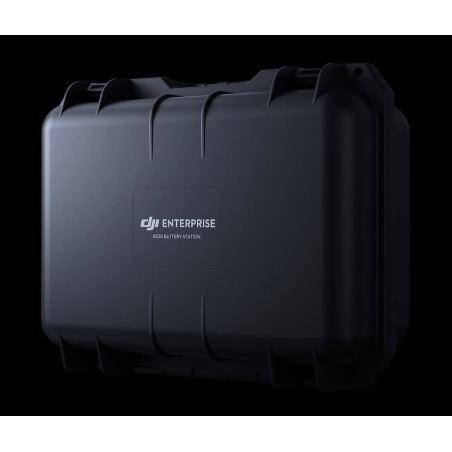

DJI - BS30 Valise de recharge

BS30 Intelligent Battery Station

Dimensions

• 353×267×148 mm

Net Weight

• 3.95 kg

Compatible Battery Type

• TB30 Intelligent Flight Battery
  WB37 Intelligent Battery

Input

• 100-240 VAC, 50/60 Hz

Output

• TB30 Battery Port: 26.1 V, 8.9 A (supported up to two outputs simultaneously)
  WB37 Intelligent Battery: 8.7 V, 6 A

Output Power

• 525 W

USB-C port

• Max. output power of 65 W

USB-A port

• Max. output power of 10 W (5 V, 2 A)

Power Consumption (when not charging battery)

• < 8 W

Output Power (when warming up battery)

• Approx. 30 W

Operating Temperature

• -20° to 40° C (-4° to 104° F)

Ingress Protection Rating[3]

• IP55 (with the cover closed properly)

Charging Time[6]

• Approx. 30 min (charging two TB30 batteries from 20%-90%)
  Approx. 50 min (charging two TB30 batteries from 0%-100%)

Protection Features

• Anti-Backflow Protection
  Short Circuit Protection
  Over Voltage Protection
  Over Current Protection
  Temperature Protection
